WRS-1501-02

Brand	Wiggens
Category	Reactor
Subcategory

Contact Sales

Max. reaction volume recommendation: 250ml

Description

NEW Bench top Reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi channel regulating valve. The unique design of the Bench top Reactor support stand and clamping system allows for quick and easy installation/removal of glassware and fits into most fume hood.

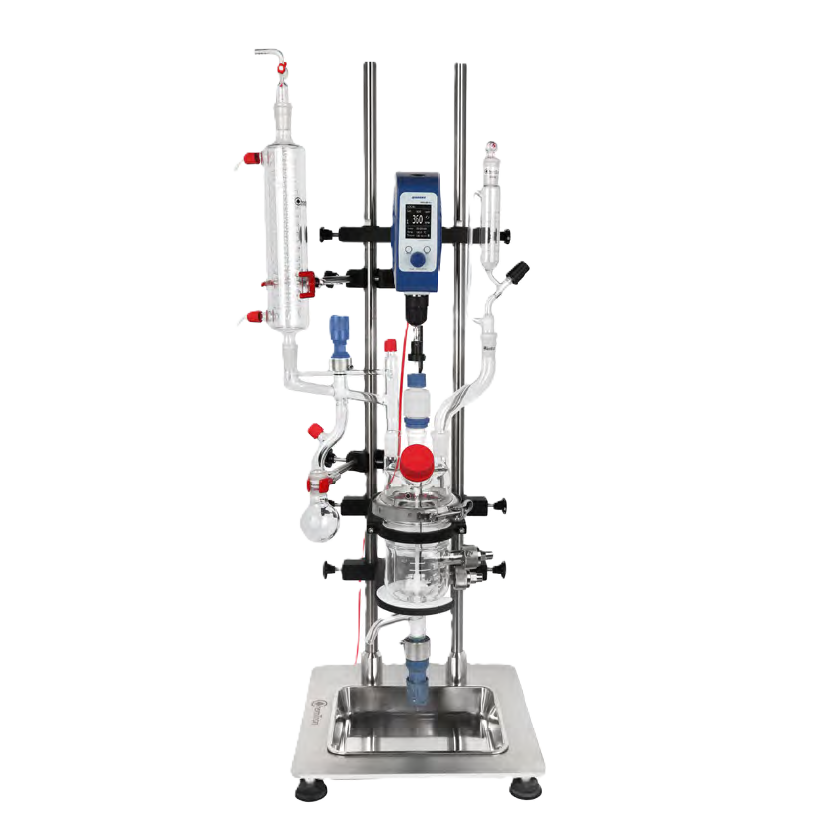

250ml complete bench top Reactor

Part number	Description
WRS-1501-021	Complete with Glassware & Stand, and Digital Overhead Stirrer WOHS-15 Pro
WRS-1501-022	Complete with Glassware, Stand, and High Torque Overhead Stirrer WOHS-400 Pro
WRS-1501-021M	Complete with Glassware & Stand, Multi channel regulating valve and Digital Overhead Stirrer WOHS-15 Pro
WRS-1501-022M	Complete with Glassware, Stand, Multi channel regulating valve and High Torque Overhead Stirrer WOHS-400 Pro

Specifications

Max. reaction volume recommendation	250mL
Flange	DN100
Bore diameter of bottom valve	0-10mm
Reactor lid	CN:24/40, SN:24/40(3), 45° -GL45
Material of reaction vessel and lid	High quality borosilicate glass
Temperature range	-60~200?
Vessel pressure	suitable for atmospheric and vacuum reaction
Jacket pressure	up to 0.5bar
Material of wet part	Borosilicate glass / PTFE / PFA
Inlet and outlet of jacket	DN15
Stirring speed	Available at 500 RPM for long-term operation, 800 RPM for short-term operation If high-speed mixing applications are required, please consult your Wiggens
Diameter/length of stirring Rod	Ø8mm / 500mm
Blade diameter	40mm?4 blade angled type stir paddle?
Length of condenser	300mm
Volume of collection flask	125mL
Volume of liquid funnel	60mL
Distance between discharge port and spill tray	130mm
Weight	28.5kg
Stand Dimensions ( W x D x H)	Approx. 500x 440x1200mm
