Product

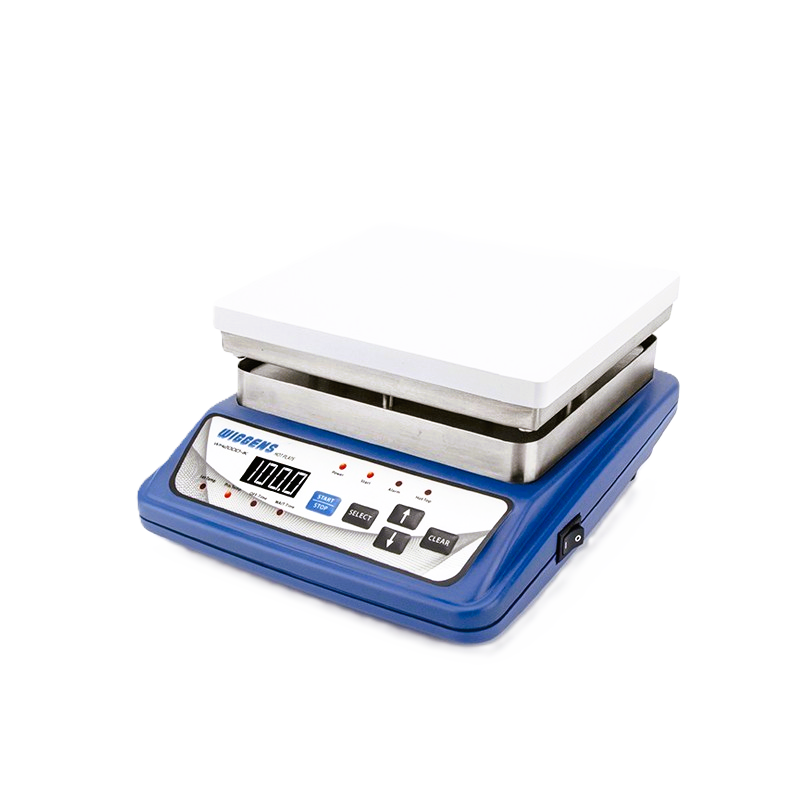

Digital Hot Plate - WH200D-1K
Brand Wiggens
Category Mixer & Stirrer
Subcategory
Heat output [W]:680
Description

> PID temperature control technology for accurate and reliable results
> Suitable for complicated temperature control requirements
> Bright LED screen can display both set value and actual temperature
> Convenient temperature setting via on-touch control
> Timer function for automatic heating up to 100 hours
> Alarm signal output which can be applied to stop the operation of the hot plate and other connected devices
> External Pt100 temperature sensor connection for direct and precise control of the actual sample temperature

Specifications

Model WH200D-1K
Order No. 400110
Maximum temperature setting 300
Maximum temperature setting with E-sensor [? ] 300
Temperature stability [? ]* ±1
Heat output [W] 680
External temperature sensor Pt100
Temperature display LED display
Temperature setting Turning knob
Top plate material Aluminum coated with ceramic
Top plate dimensions [mm] 170×170
Dimensions W x D x H [mm] 240 x280 x70
Weight [kg] 2.5
Power supply 220V/50Hz

*Measured with 500ml water at 80 ?
Standard package includes: hot plate, thermocouple sensor PT100-01 with holder and clamp
