Filtration Set - VF10

Brand	Wiggens
Category	Laboratory Equipment
Subcategory

Contact Sales

Funnel Capacity (mL): 1000

Description

> Vacuum filtration technique is widely used in liquid filtration in microbiological detection, suspended solid detection, sample pre-process or solvent purification, mostly for microanalysis of HPLC, GC, or AA in food, medicine, beverage, drinking water, etc.

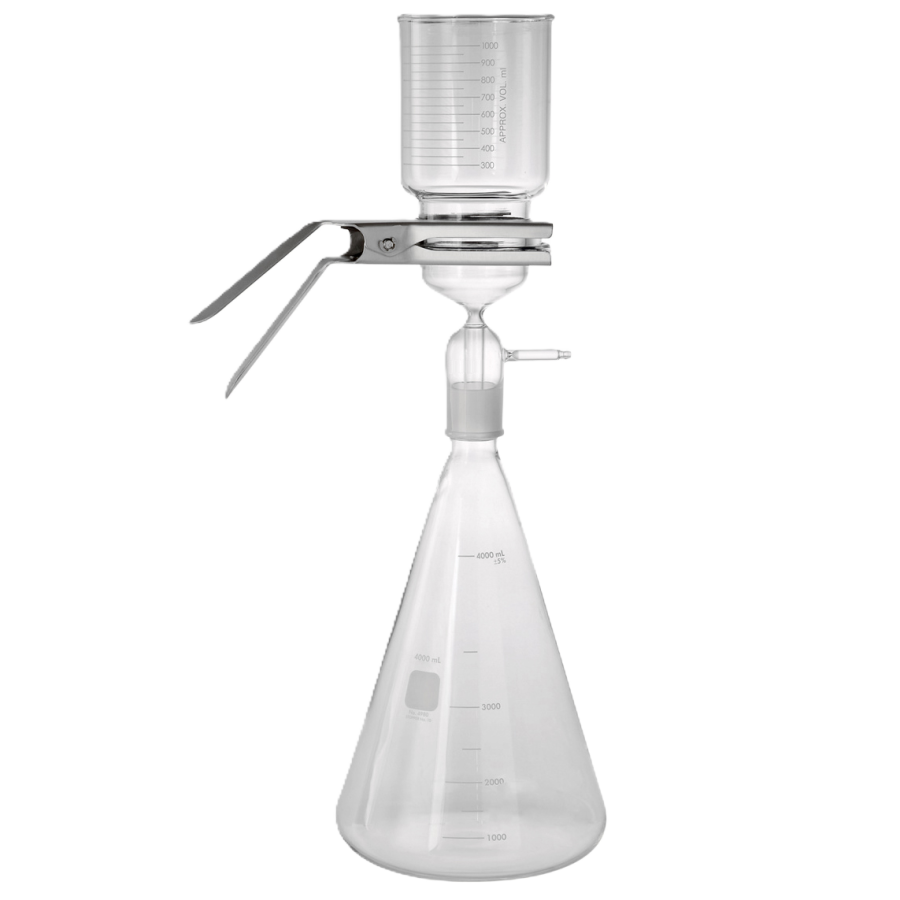

> This unique design combines a filtration funnel with a receiver flask with drain, together with magnetic weighted base, guaranteeing the efficiency and stability.

Specifications

Model		VF10
Material	Funnel	Borosilicate Glass
	Funnel Base	Borosilicate Glass
	Membrane Support	Borosilicate Glass
	Stopper	--
	Receiver Flask with Drain	Borosilicate Glass
Funnel Capacity (mL)		1000
Filtration Flask Capacity (mL)		4000
Filter Diameter (mm)		47
Effective Filtration Area (cm2 )		9.6
Tube I.D. (mm)		8

Order Information
1000mL Glass Filtration Set
47mm, Sintered glass membrane support Ideal for the purification of organic, corrosive liquid such as solvent (mobile phase) for HPLC analysis.

VF10		167200-10
1000mL Glass filter set?1+2+3?		167210-35
1	Glass funnel, 1000 mL	167210-10
2	Anodized aluminum clamp	167240-01
3	Glass support base & tubulated cap	167230-01
4	Ground joint flask, 4000 mL	167250-06
