Filtration Set - VF30

Brand	Wiggens
Category	Laboratory Equipment
Subcategory

Contact Sales

Funnel Capacity (mL) : 300

Description

> Vacuum filtration technique is widely used in liquid filtration in microbiological detection, suspended solid detection, sample pre-process or solvent purification, mostly for microanalysis of HPLC, GC, or AA in food, medicine, beverage, drinking water, etc.

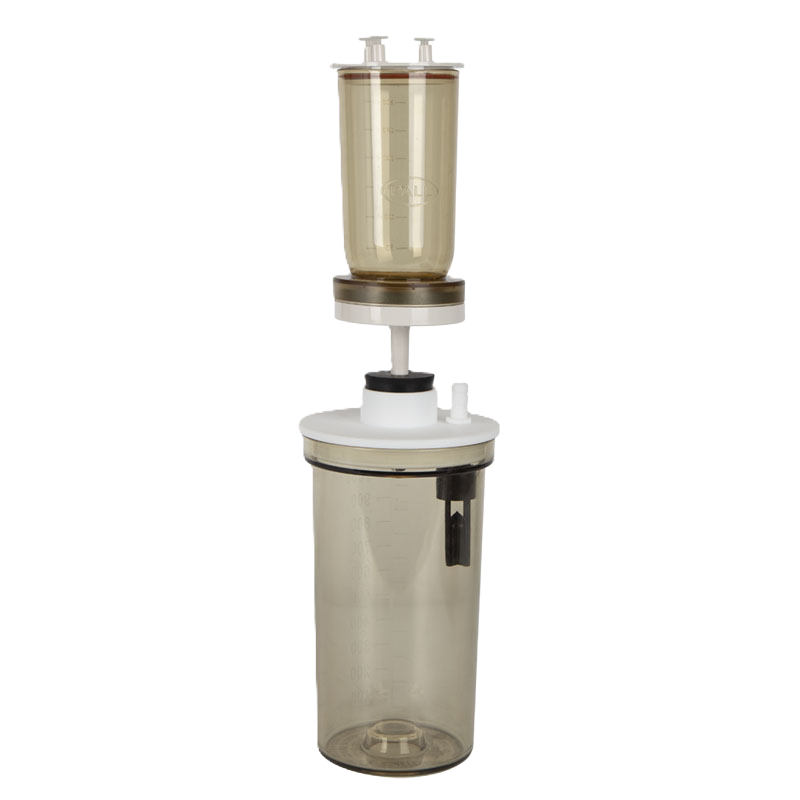

> This unique design combines a filtration funnel with a receiver flask with drain, together with magnetic weighted base, guaranteeing the efficiency and stability.

Specifications

Model		VF30
Material	Funnel	PES
	Funnel Base	PES
	Membrane Support	PP
	Stopper	Silicon
	Receiver Flask with Drain	Borosilicate Glass
Funnel Capacity (mL)		300
Filtration Flask Capacity (mL)		1000
Filter Diameter (mm)		47
Effective Filtration Area (cm2 )		9.6
Tube I.D. (mm)		8

Order Information
300mL PES Magnetic Filtration set
47mm, PP membrane support, float to prevent overflow For general filtration and waste inhalation

VF30		197010-30
Magnetic filter funnel 300 mL?2+3+4+5?		167100-18
1	PP Funnel Lid	167130-32
2	Magnetic filter cup, 300mL	167000-34
3	PP Membrane support	167000-37
4	PES support base	167000-35
5	Silicone stopper	167110-16
PC waste bottle with cover,1000 mL?6+7+8?		197000-11-PC
6	PC cover	197000-32-PC
7	Overflow protection	197000-39
8	PC bottle, 1000 mL	197000-31-PC
