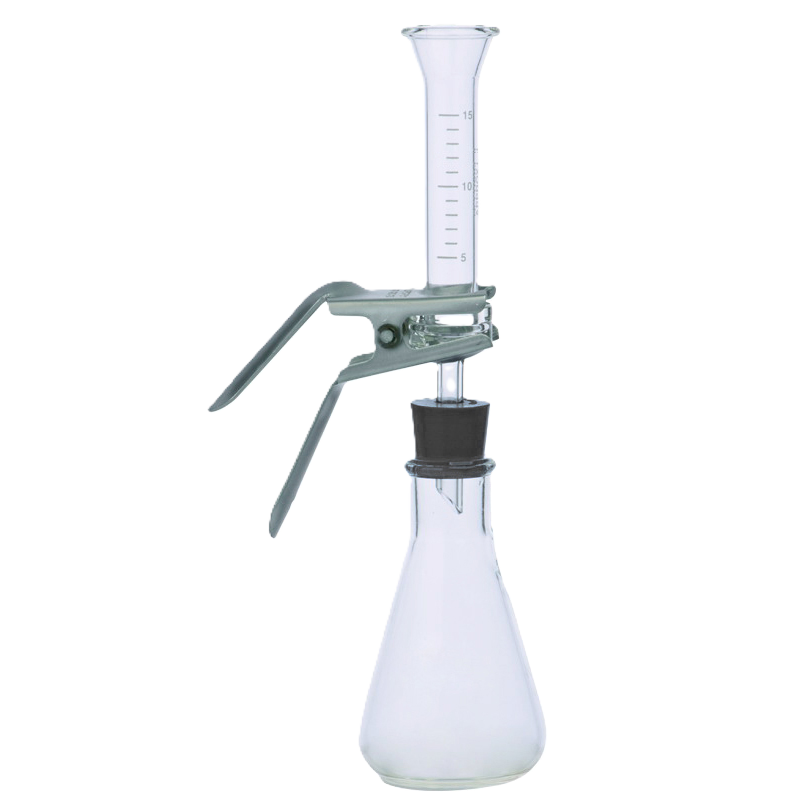

Filtration Set - VF5

Brand	Wiggens
Category	Laboratory Equipment
Subcategory

Contact Sales

Funnel Capacity (mL): 15

Description

> Vacuum filtration technique is widely used in liquid filtration in microbiological detection, suspended solid detection, sample pre-process or solvent purification, mostly for microanalysis of HPLC, GC, or AA in food, medicine, beverage, drinking water, etc.
> This unique design combines a filtration funnel with a receiver flask with drain, together with magnetic weighted base, guaranteeing the efficiency and stability.

Specifications

Model		VF5
Material	Funnel	Borosilicate Glass
	Funnel Base	Borosilicate Glass
	Membrane Support	Borosilicate Glass
	Stopper	Silicon
	Receiver Flask with Drain	Borosilicate Glass
Funnel Capacity (mL)		15
Filtration Flask Capacity (mL)		125
Filter Diameter (mm)		25
Effective Filtration Area (cm2 )		2.2
Tube I.D. (mm)		8

Order Information
15mL Small Volume Glass Filtration Set 25mm,
Sintered glass membrane support Ideal for small volume vacuum filtration for biological analysis or particulate contamination analysis.

VF5		167200-05
15 mL Glass filter set?1+2+3+4?		167120-32
1	Glass funnel, 15 mL	167220-15
2	Anodized aluminum clamp	167240-05
3	Glass support base	167230-04
4	Silicone stopper	167110-18
5	125 mL Receiver flask	167250-05
