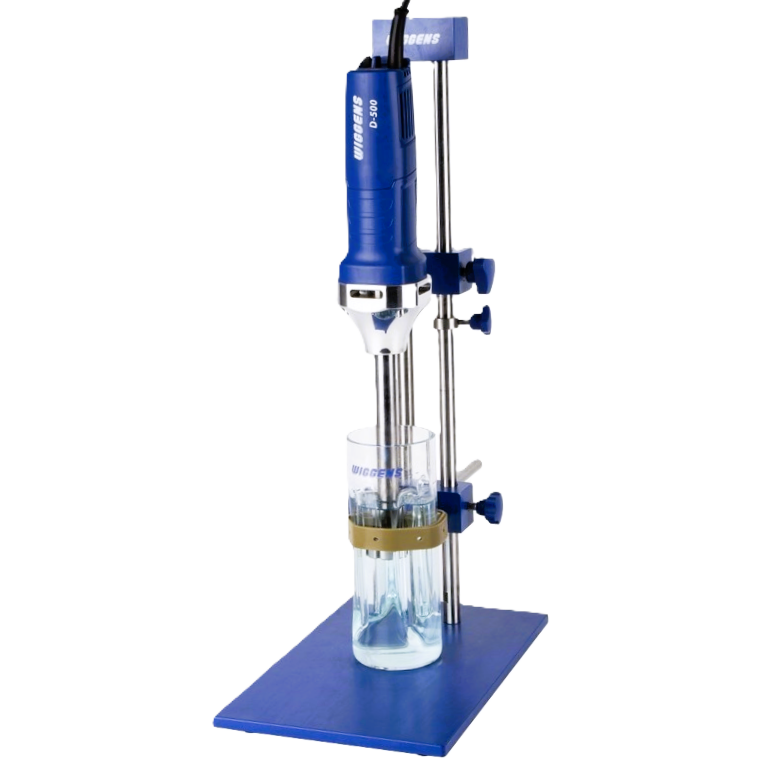

High Speed Homogenizer - D-500

Brand	Wiggens
Category	Mixer & Stirrer
Subcategory

Contact Sales

Speed with Zero-Load: 10,000-30,000 rpm
Process Range H2O: 10-40,000mL

Description

Used for homogenizing, emulsifying or suspending. There is a broad spectrum of dispersing tools to choose from.

Features
> Continuosly adjustable speeds for better results
> Light-weighted and small-dimensioned for better handling
> Triple safety of the drive (overload protection. Smooth start – against jerky work, safety switch)
> High quality dispersing tools as standard for better resistance to corrosion (SS 316 L steel)
> Quick-change system of the dispersing tools for a short changing time between preparations
> Viscosities up to 10,000 cps
> One shaft size
> High quality lab dispersing unit, at a competitive price!
> D-500pro can maintain constant motor speed by feedback control even under changing loads

Specifications

Model	D-500
Speed setting	Knob
Speed display	Scale
Process Range H2O(mL)	10~40,000mL
Speed with Zero-Load (rpm)	10,000~30,000 rpm
Applicable aggregates	Ø4~Ø23 mm
Noise Level (dB)	72 dB (30,000 rpm)
Motor	AC
Input / Output Power (W)	500 W
Supply voltage (V)	220V/50~60Hz
Relative humidity (max.)	80% RH
Operating temperature	0~40?
IP Code	IP20
Dimensions (W x L x H in mm)	Drive:70×70×255 mm
Weight (kg)	Drive:1.3 kg
