PlusChem Pilot Plant Reactor - CH100LDN400

Brand	Wiggens
Category	Reactor
Subcategory

Contact Sales

Bore diameter of bottom valve:0-25mm

Description

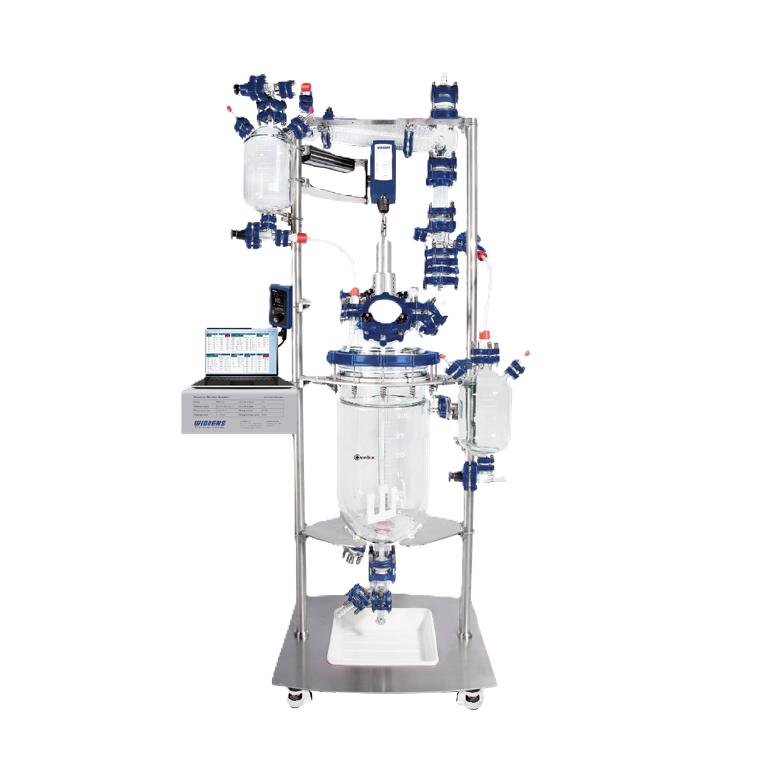

PlusChem pilot plant reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi channel regulating valve. The unique design of the smart supporting structure and clamping system allows for quick and easy installation/removal of glassware. System is supplied complete with the components listed below and numbered on the image below.

> The flange of vessel for PlusChem up tO.D.450
> Better heat transfer, mass transfer effect for PlusChem
> Flange connection for PlusChem between two glass part
> Compared with Easychem, PlusChem with better expansibility
> With mechanical seal, PlusChem suitable for higher speed mixing application
> Compared with EZChem, PlusChem comes standard with pressure Rupture disc, can be sealed for short periods of time, nitrogen protection

100L complete PlusChem Pilot Plant reactor

Part Number	Part	Description
KC1-PLUS-CH100LDN400	100L complete PlusChem Pilot Plant reactor-DN400, Horizontal Condenser	Complete with reaction system, Stand, 25L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF
KC2-PLUS-CH100LDN400	100L complete PlusChem Pilot Plant reactor-DN400, Horizontal Condenser	Complete with reaction system, Stand, 25L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF

Specification

Reaction volume	100L
Flange of vessel	DN400
Bore diameter of bottom valve	0-25mm
Reactor lid	DN400, 1×45/40(CN)?4×45/40(SN)? 2×29/32(SN)?1×DN100(SN-45° )
Total openings on the lid	7
Material of reaction vessel and lid	High quality borosilicate glass
Temperature range	-60~200?
Vessel pressure	-1~0.5bar, Standard with rupture disc
Material of wet part	Borosilicate glass / PTFE / PFA
Inlet and outlet of jacket	DN25
Type of stirring bearing	Mechanical Seal
Stirring speed	Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens
Diameter of stirring Rod	Ø28mm
Blade	Anchor style stir paddle
Condensation area	DN80 / 1.5m2
Volume of collection flask	25L
Volume of liquid funnel	25L
Temperature sensor	Ø6mm×900mm
