PlusChem Pilot Plant Reactor - CH20L
Bore diameter of bottom valve:0-25mm
|
PlusChem pilot plant reactor are complete with support stand, overhead stirrer and glassware, available with the optional multi channel regulating valve. The unique design of the smart supporting structure and clamping system allows for quick and easy installation/removal of glassware. System is supplied complete with the components listed below and numbered on the image below.
> The flange of vessel for PlusChem up tO.D.450
> Better heat transfer, mass transfer effect for PlusChem
> Flange connection for PlusChem between two glass part
> Compared with Easychem, PlusChem with better expansibility
> With mechanical seal, PlusChem suitable for higher speed mixing application
> Compared with EZChem, PlusChem comes standard with pressure Rupture disc, can be sealed for short periods of time, nitrogen protection

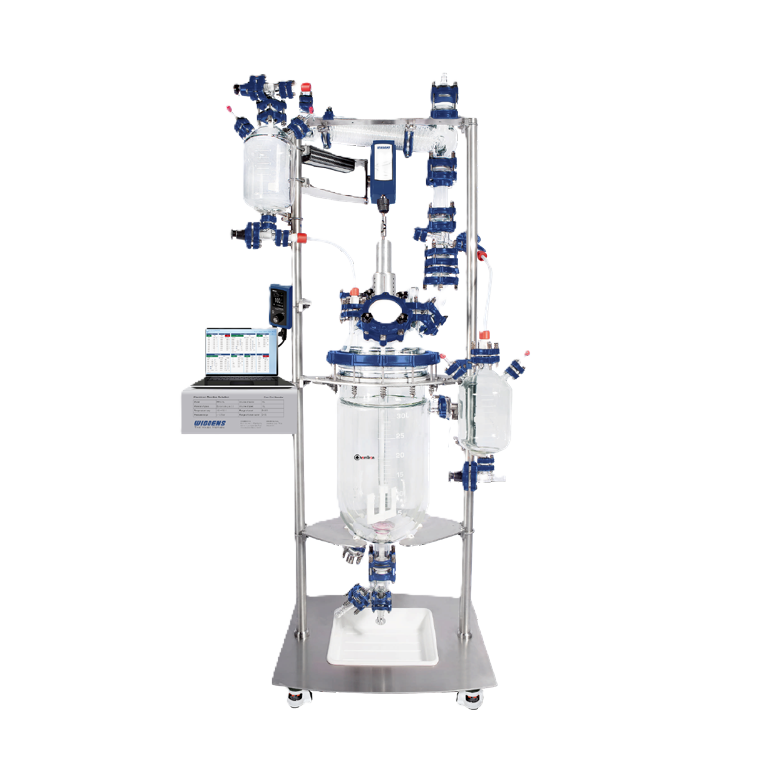

20L complete PlusChem Pilot Plant reactor
| Part Number | Part | Description |
| KC1-PLUS-CH20L | 20 L complete PlusChem Pilot Plant reactor-DN300, Horizontal Condenser | Complete with reaction system, Stand, 5L Distillation unit, High Torque Overhead Stirrer WOHS-400 ProF |
| KC2-PLUS-CH20L | 20 L complete PlusChem Pilot Plant reactor-DN300, Horizontal Condenser | Complete with reaction system, Stand, 5L Distillation unit, Manifold / Drain System and High Torque Overhead Stirrer WOHS-400 ProF |
Specification
| Reaction volume | 20L |
| Flange of vessel | DN300 |
| Bore diameter of bottom valve | 0-25mm |
| Reactor lid | DN300, 1xDN25(CN) , 1xDN80, 3xDN40, 1xDN25, 1xDN50 |
| Total openings on the lid | 7 |
| Material of reaction vessel and lid | High quality borosilicate glass |
| Temperature range | -60~200? |
| Vessel pressure | -1~0.5bar, Standard with rupture disc |
| Material of wet part | Borosilicate glass / PTFE / PFA |
| Inlet and outlet of jacket | DN25 |
| Type of stirring bearing | Mechanical Seal |
| Stirring speed | Available at 500 RPM for long-term operation, 800 RPM for short-term operation, if high-speed mixing applications are required, please consult your Wiggens |
| Diameter of stirring Rod | Ø16mm |
| Blade | Anchor style stir paddle |
| Condensation area | DN50 / 0.6m2 |
| Volume of collection flask | 5L |
| Volume of liquid funnel | 5L |
| Temperature sensor | Ø6mm×600mm |
|
