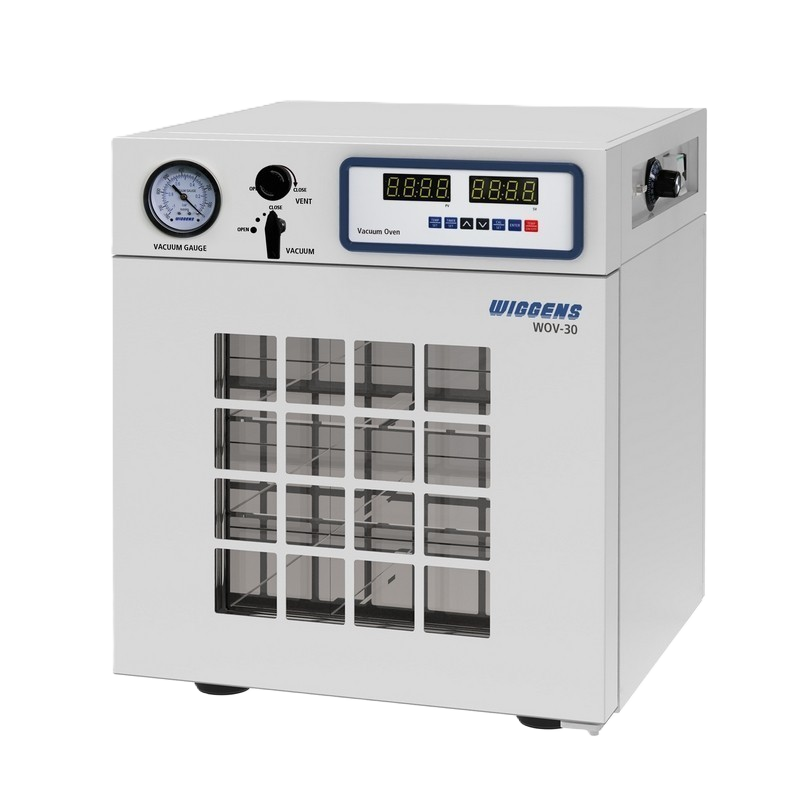

Optimally constructed for separating solvents from solutions or other sample with high boiling points. With vacuum, the boiling point of the solvent can be reduced, protecting the sample and make the separation process easier. The vacuum oven is widely used in the fields of biochemistry, chemical industry, pharmacy, medical and health, agricultural research, environmental protection, etc. , for powder drying, baking and various types of glass containers for disinfection and sterilization. It is especially suitable for fast and efficient drying of heat-sensitive, easily decomposed, easily oxidized materials and articles with complex components.

Features
Display
> Large LED temperature display for actual value and setpoint(resolution on 0.1? )
> The vacuum gauge displays the vacuum in the oven in real time

Operation
> Wiggens traditional operation panel, clear and simple
> Three common temperature points can be used to start the test quickly
> Ball valve used for open and close the vacuum in oven
> Need valve used for venting
> All connections as well vacuum and venting are located at the rear

Temperature control
> Wide temperature range that can be controlled up to 250?
> Improved temperature distribution. (±3.7? at 100? )
> Integrated programmer for the execution of time and temperature dependant profiles, 1 temperature profile with 9 steps max. The selected steps can set up up to 200 loops

Structural and Safety
> Toughened glass doors allow easy access to the interior of the oven.
> Safety door cover to protect users and laboratories when toughened glass breaks
> Overcurrent and over temperature protection
> Different materials of O-ring are optional
> RS232 interface

Specifications
